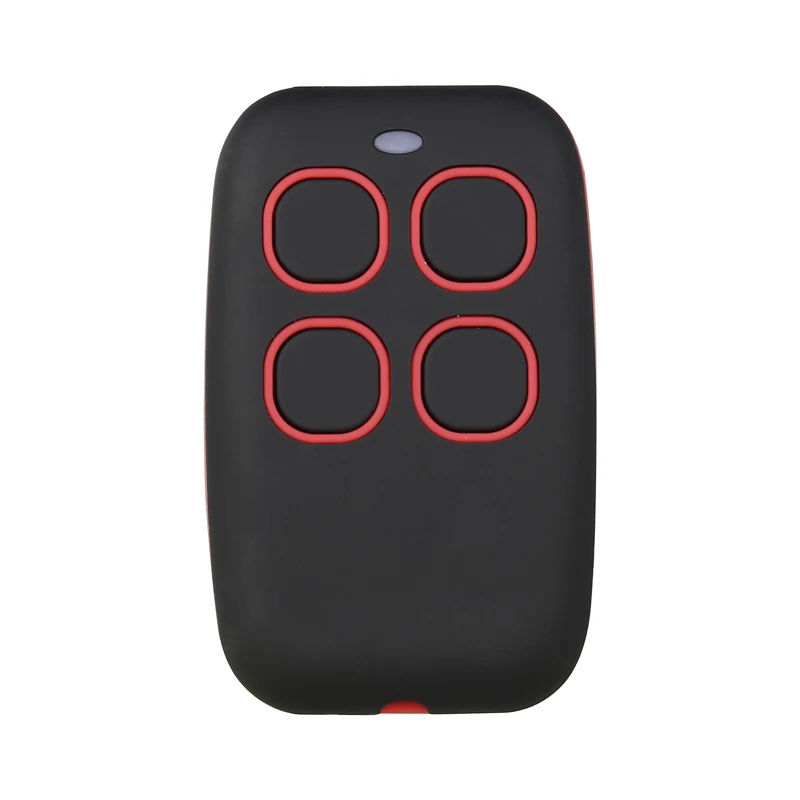

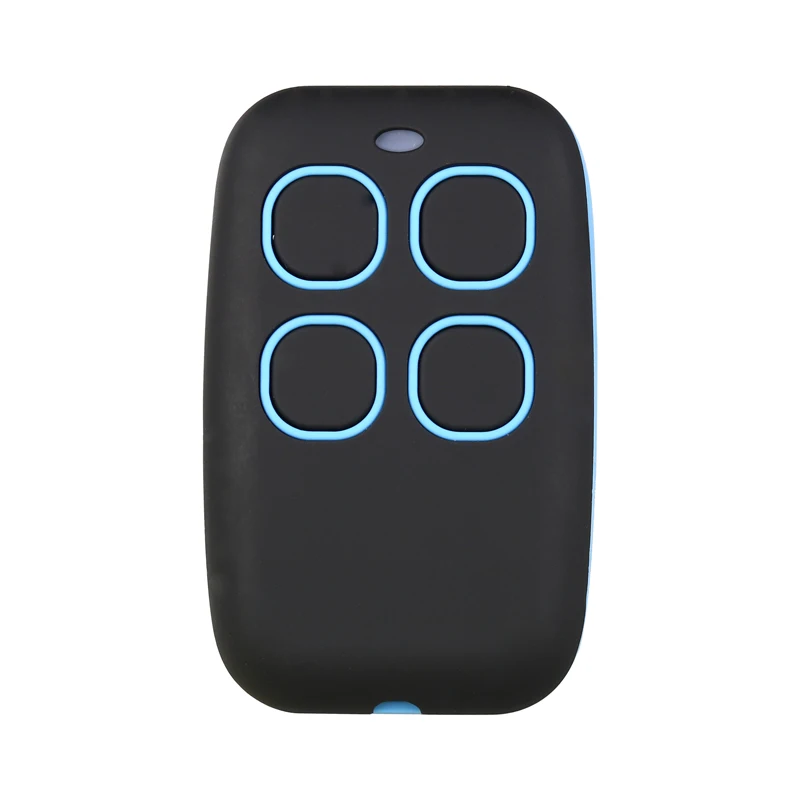

433MHz RF Wireless Remote Control 4 Keys Waterproof Copy Code Duplicator for Garage Door Gate Light Samrt Home Remote Opener
$10.99
This deal will end in
00m
:
00s
Color: White 433MHZ
433MHz RF Wireless Remote Control 4 Keys Waterproof Copy Code Duplicator for Garage Door Gate Light Samrt Home Remote Opener
NOTE :This is a fixed frequency remote cloner (433mhz) for copying common fixed and learning code remote controls.If your remote uses the 433MHZ frequency it will work with the remote duplicator (note: rolling code remotes will not work).

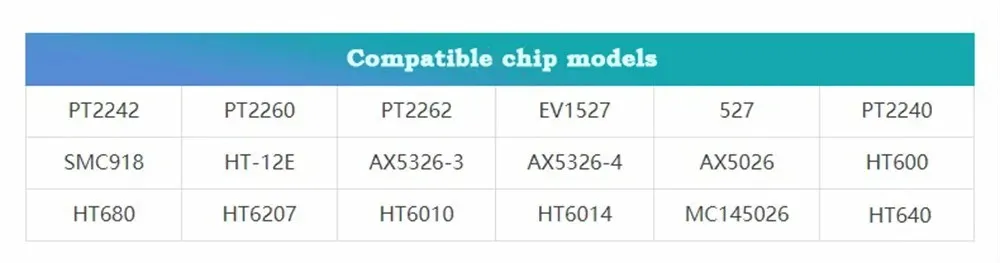

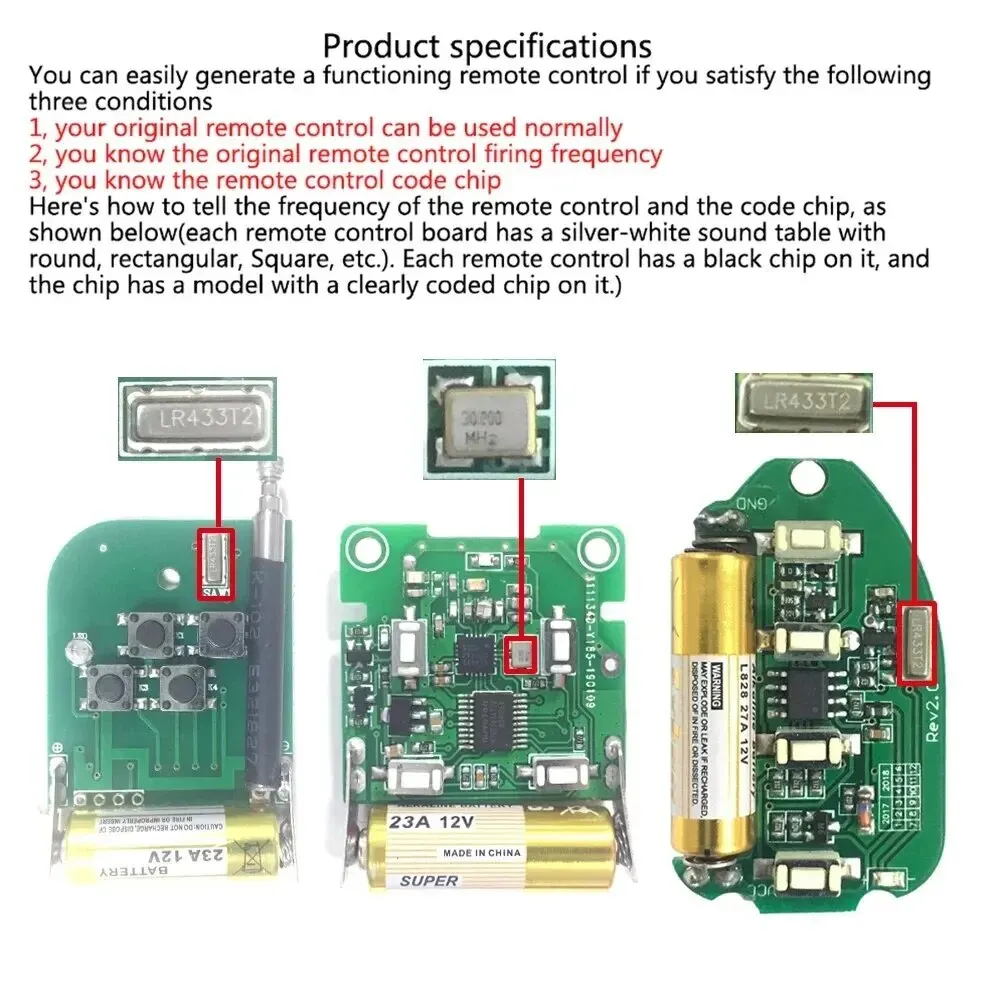

Compatible IC model of original remote control is PT2242, PT2260 ,PT2262, EV1527 ,527 ,PT2240 ,SMC918 ,HT-12E ,AX5326-3 ,AX5326-4, AX5026, HT600, HT680, HT6207, HT6010, HT6014,MC145026 ,HT640 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.
Feature :
1. Appearance pinch just the right palm size design, hard and compact , hold in the hand feel 'just right'!
2. ABS high toughness body is made of ABS plastic particles injection moulding, with the advantages of strong toughness, pressure resistance, drop resistance, wear-resistant, etc.
3.HIGH-PERFORMANCE RF CHIP: This remote control replicator is equipped with a high-performance RF chip, which ensures stable frequency oscillation, accurate frequency point and long transmission distance. which can provide reliable and sensitive control ability.
4.Multi-functional and multi-purpose: The remote control has a simple design with multiple functions and variables, applicable to electric door remote control, retractable door remote control, garage door remote control, motor control remote control, curtain control remote control, LED control remote control, motor control remote control, and so on. control, curtain control remote control, LED light remote control, automobile and motorcycle remote control, industrial equipment remote control, and so on.
5.EASY COPYING PROCESS: The copying process of this industrial wireless remote control is fast and easy, which can copy the settings of the original remote control without affecting its functions.
Transmitter (Remote Control)
Model: AK-K200803
Operating voltage: DC12V
Transmit current: ≤21mA
Static current: <0.15uA
Operating Frequency: 433MHz
Transmit power: 3~6dBm

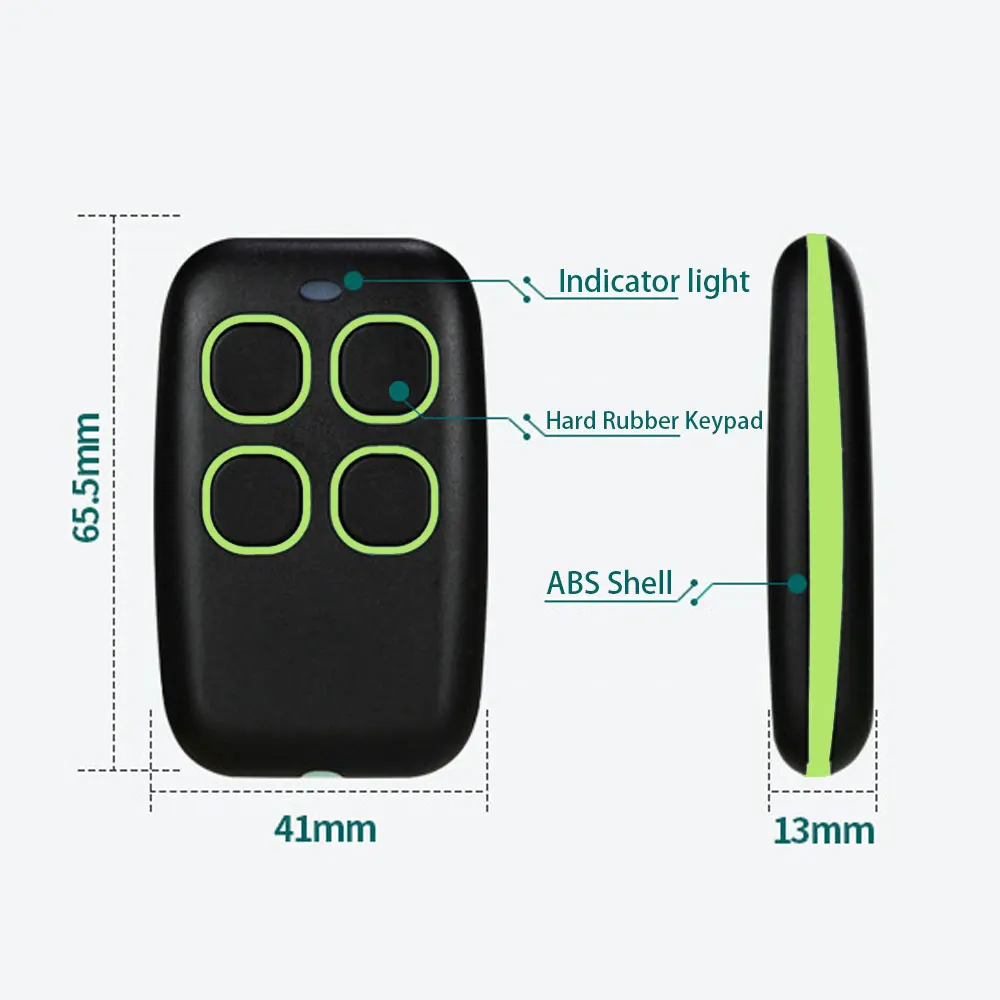

Size: 65.5*41*13mm
Weight: 25g
Compatible IC model of original remote control is PT2242, PT2260 ,PT2262, EV1527 ,527 ,PT2240 ,SMC918 ,HT-12E ,AX5326-3 ,AX5326-4, AX5026, HT600, HT680, HT6207, HT6010, HT6014,MC145026 ,HT640 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.
Feature :
1. Appearance pinch just the right palm size design, hard and compact , hold in the hand feel 'just right'!
2. ABS high toughness body is made of ABS plastic particles injection moulding, with the advantages of strong toughness, pressure resistance, drop resistance, wear-resistant, etc.
3.HIGH-PERFORMANCE RF CHIP: This remote control replicator is equipped with a high-performance RF chip, which ensures stable frequency oscillation, accurate frequency point and long transmission distance. which can provide reliable and sensitive control ability.
4.Multi-functional and multi-purpose: The remote control has a simple design with multiple functions and variables, applicable to electric door remote control, retractable door remote control, garage door remote control, motor control remote control, curtain control remote control, LED control remote control, motor control remote control, and so on. control, curtain control remote control, LED light remote control, automobile and motorcycle remote control, industrial equipment remote control, and so on.
5.EASY COPYING PROCESS: The copying process of this industrial wireless remote control is fast and easy, which can copy the settings of the original remote control without affecting its functions.
Transmitter (Remote Control)
Model: AK-K200803
Operating voltage: DC12V
Transmit current: ≤21mA
Static current: <0.15uA
Operating Frequency: 433MHz
Transmit power: 3~6dBm
Size: 65.5*41*13mm
Weight: 25g
Package include
Remote control (with batteries + product operation manual *1)
Remote control (with batteries + product operation manual *1)

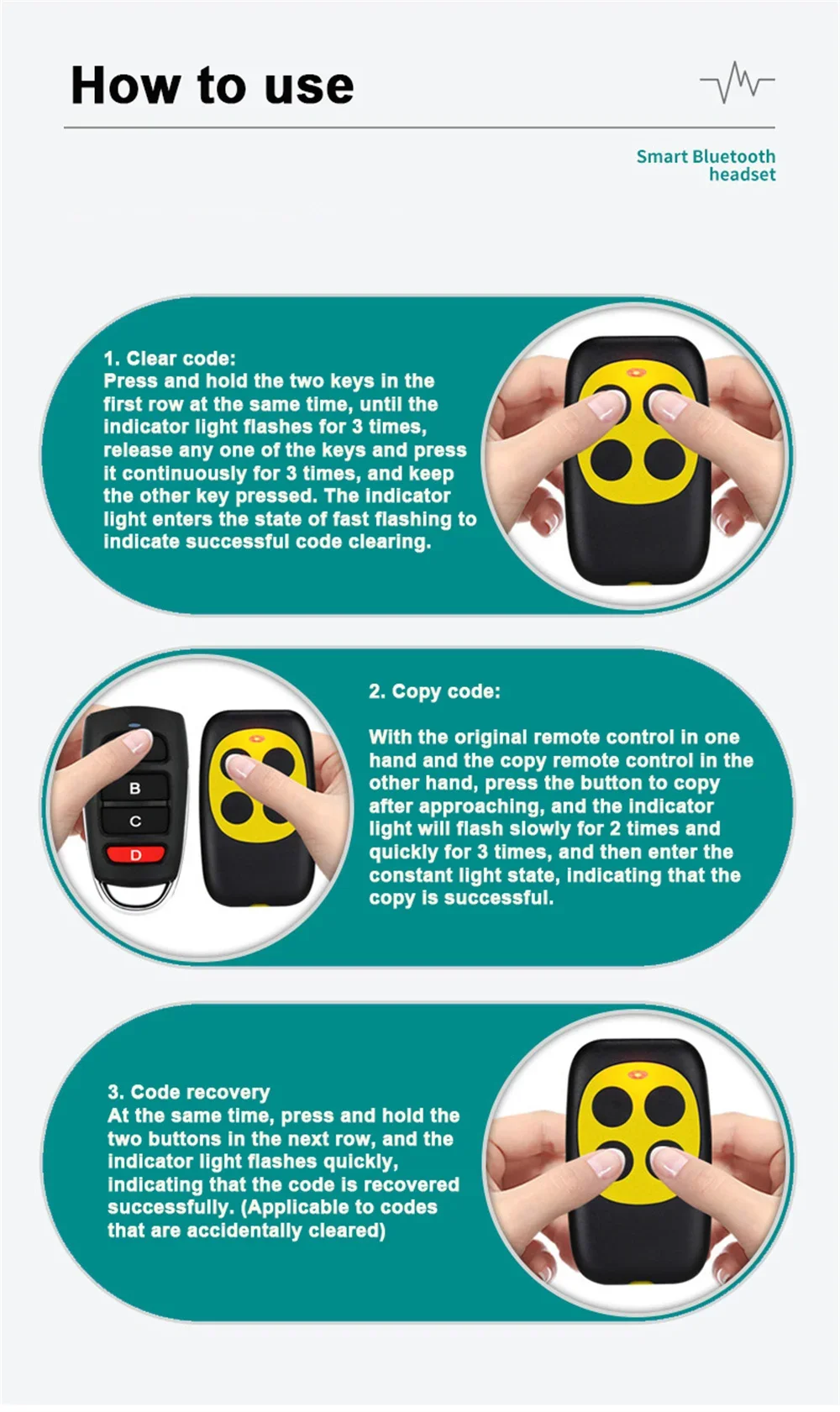

How to operate the remote control
Ⅰ. Clearing method: Press and hold the two keys in the first row at the same time, the LED indicator flashes three times, release any one of the buttons (the other one keeps pressing and holding), press the released button three times, and the LED indicator enters Fast flashing status, indicating that the clearing code is completed (the remote controller has been cleared, short press, the LED indicator does not light).
Note: Press the two buttons as much as possible at the same time, otherwise it will not enter the clear code state.
Ⅱ. Copy: One hand holding the original remote control, the other hand-held copying remote control, the two remote controls are close to each other, respectively press the button to be copied, the LED indicator flashes three times and then lights up continuously, indicating that the copy is successful, other buttons the operation method is the same.
Note: If the post-copy function is not normal, please clear the code and copy it again. (Recommended: replace the original remote control battery before copying)
Recovery instructions:
If the useful code is cleared by mistake, you can press the two buttons below of the remote control at the same time without recopying the other remote controllers. After the indicator flashes rapidly for 3 times, the recovery is successful.
Ⅰ. Clearing method: Press and hold the two keys in the first row at the same time, the LED indicator flashes three times, release any one of the buttons (the other one keeps pressing and holding), press the released button three times, and the LED indicator enters Fast flashing status, indicating that the clearing code is completed (the remote controller has been cleared, short press, the LED indicator does not light).
Note: Press the two buttons as much as possible at the same time, otherwise it will not enter the clear code state.
Ⅱ. Copy: One hand holding the original remote control, the other hand-held copying remote control, the two remote controls are close to each other, respectively press the button to be copied, the LED indicator flashes three times and then lights up continuously, indicating that the copy is successful, other buttons the operation method is the same.
Note: If the post-copy function is not normal, please clear the code and copy it again. (Recommended: replace the original remote control battery before copying)
Recovery instructions:
If the useful code is cleared by mistake, you can press the two buttons below of the remote control at the same time without recopying the other remote controllers. After the indicator flashes rapidly for 3 times, the recovery is successful.
Package Included: 1 * remote control 433MHz(battery included)
Wide Range of Uses
Super Stable RF Output

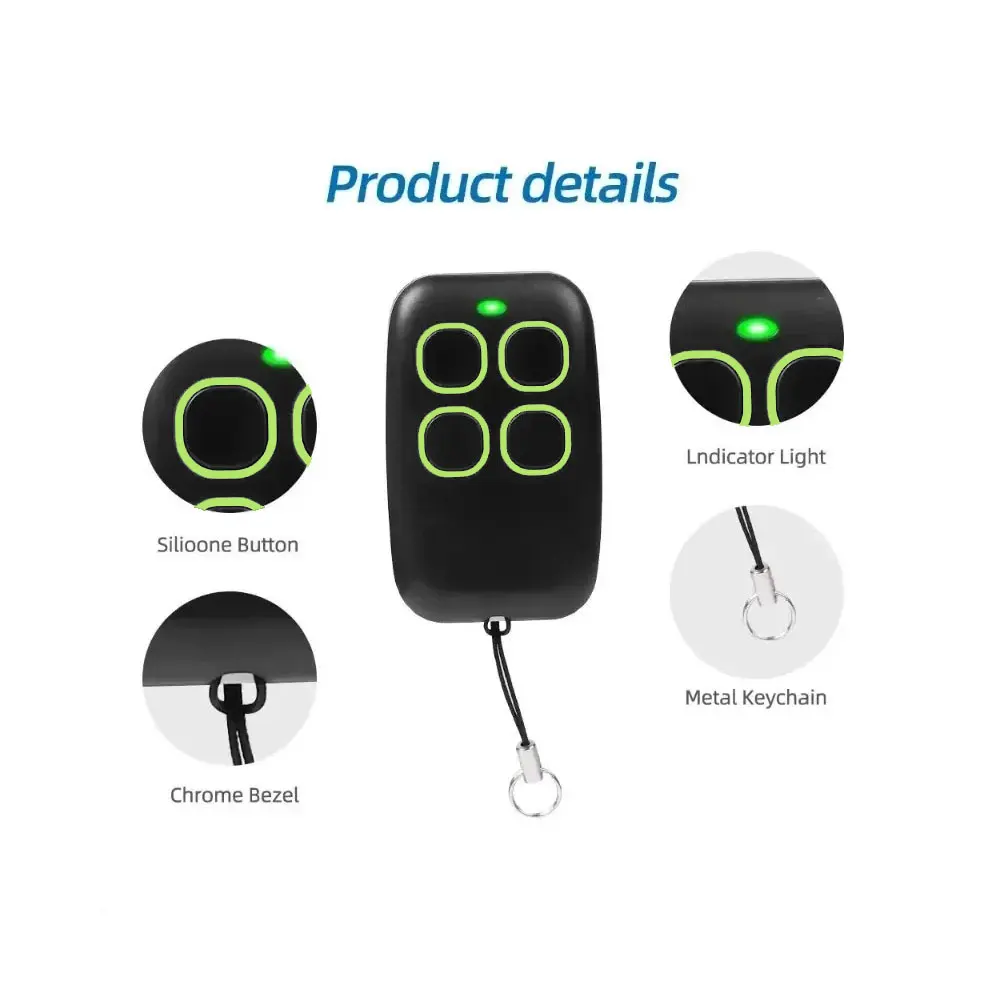

Product Details
Super Stable RF Output
Product Details
